ND25 ND85 ND1120 ND DHD COP Hard Rock Drill Bit

Product Categories

Hunan New Diamond Construction Machinery Co., Ltd.

Contact Now

ND25 ND85 ND1120 ND DHD COP Hard Rock Drill Bit

Ask Lasest Price
Brand Name :	New Diamond
Model Number :	ND25 ND3.5 ND45 ND55 ND65 ND85 ND1120
Price :	70-2000usd
Payment Terms :	T/T, Western Union
Supply Ability :	100000pcs/month
Delivery Time :	2-4weeks

Add to Cart

Product Details
Company Profile

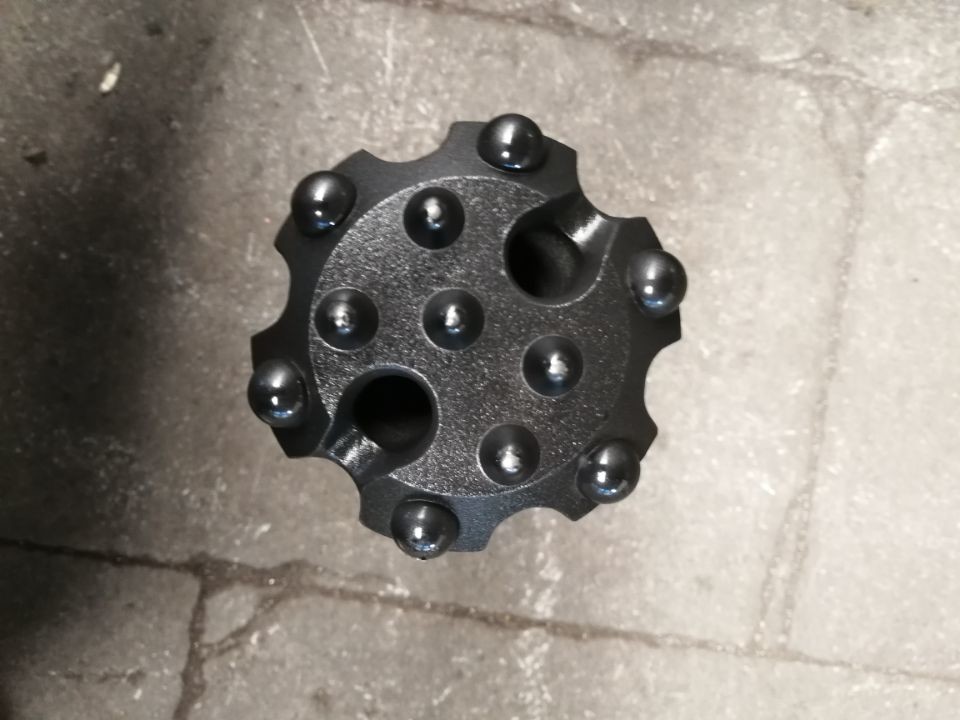

ND25 ND85 ND1120 ND DHD COP Hard Rock Drill Bit

ND25 ND3.5 ND45 ND55 ND65 ND85 ND1120 ND DHD COP Hard Rock Drill Bit

Specifications

DHD	Head shape	Diameter (mm)	Number of vents	NO X button diamter			weight (KG)
DHD	Head shape	Diameter (mm)	Number of vents	Toothed	Gauge	Front	weight (KG)
DHD3.5/ND35	Flat Face	90	2	Round+Ballistic Button	6XØ14	5XØ12	4.7
	Flat Face	95	2	Round+Ballistic Button	6XØ14	5XØ12	4.8
	Flat Face	100	2	Round+Ballistic Button	6XØ14	6XØ12	4.9
	Flat Face	108	2	Round+Ballistic Button	8XØ13	6XØ12	5.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series	Head shape	Diameter (mm)	Number of vents	Button qty.pcs*dia.mm			weight (KG)
DHD series	Head shape	Diameter (mm)	Number of vents	Button Type	Gauge	Front	weight (KG)
DHD340/COP44/ND45	Convex Face	108	2	Round+Ballistic Button	7XØ16	6XØ14	7.85
	Convex Face	115	2	Round+Ballistic Button	7XØ16	6XØ14	8.22
	Convex Face	127	2	Round+Ballistic Button	8XØ16	4XØ14+3XØ13	8.88
	Convex Face	130	2	Round+Ballistic Button	8XØ16	4XØ14+3XØ13	9.15
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series	Head shape	Diameter (mm)	Number of vents	Button qty.pcs*dia.mm			weight (KG)
DHD series	Head shape	Diameter (mm)	Number of vents	Button Type	Gauge	Front	weight (KG)
DHD350/COP54/ND55	Convex Face	140	2	Round+Ballistic Button	7XØ18	4XØ15+3XØ14	15.8
	Flat Face	146	2	Round+Ballistic Button	8XØ18	8XØ14	16.5
	Flat Face	152	2	Round+Ballistic Button	8XØ18	8XØ14	17
	Concave Face	165	2	Spherical	8XØ18	4XØ16+4XØ14	18.9
	Concave Face	178	2	Spherical	8XØ18	6XØ16+5XØ14	20.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series	Head shape	Diameter (mm)	Number of vents	Button qty.pcs*dia.mm			weight (KG)
DHD series	Head shape	Diameter (mm)	Number of vents	Button Type	Gauge	Front	weight (KG)
DHD360/COP64/ND65	Concave Face	154	2	Domed	8XØ18	4XØ16+4XØ15	22.5
	Flat Face	165	2	Domed	8XØ18	8XØ16	23.6
	Concave Face	171	2	Domed	8XØ18	6XØ16+4XØ15	25.2
	Concave Face	178	2	Domed	8XØ18	6XØ16+5XØ15	26.1
	Concave Face	190	3	Domed	9XØ18	6XØ16+5XØ15	29
	Concave Face	203	2	Domed	10XØ18	8XØ16+6XØ15	30.4
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series	Head shape	Diameter (mm)	Number of vents	Button qty.pcs*dia.mm			weight (KG)
DHD series	Head shape	Diameter (mm)	Number of vents	Button Type	Gauge	Front	weight (KG)
DHD380/COP84/ND85	Concave Face	203	2	Domed	10XØ18	4XØ18+10XØ16	48.5
	Concave Face	216	2	Domed	10XØ18	4XØ18+10XØ16	52.1
	Concave Face	230	2	Domed	12XØ18	12XØ18+6XØ16	54.8
	Concave Face	235	2	Domed	12XØ18	12XØ18+6XØ16	55.5
	Concave Face	254	2	Domed	12XØ18	12XØ18+8XØ16	62.4
	Concave Face	275	2	Domed	12XØ18	27XØ16	69
	Concave Face	305	3	Domed	15XØ18	35XØ16	77.6
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

DHD series	Head shape	Diameter (mm)	Number of vents	NO X button diamter			weight (KG)
DHD series	Head shape	Diameter (mm)	Number of vents	Toothed	Gauge	Front	weight (KG)
DHD1120	Convex-concave Face	305	3	Domed	15XØ20	27XØ18+8XØ16	141.3
	Convex-concave Face	311	3	Domed	15XØ20	27XØ18+8XØ16	141.6
	Convex-concave Face	325	3	Domed	15XØ20	27XØ18+9XØ16	164.3
	Convex-concave Face	350	4	Domed	16XØ20	32XØ18+13XØ16	169.1
	Convex-concave Face	381	4	Domed	16XØ20	36XØ18+8XØ16	183
	Convex-concave Face	400	4	Domed	16XØ20	40XØ18+28XØ16	194
	Convex-concave Face	445	4	Domed	20XØ20	48XØ18+25XØ16	225.7
	Convex-concave Face	500	4	Domed	24XØ20	90XØ18	331.2
We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

1.The longer life of the drill

the alloy material, with longer using life which better than the
similar products.

2.High Drilling Efficiency

the drill buttons is wear-resistant, so that the drill can always
keep sharp, thus greatly improving the speed of the drilling.

3.The drilling speed is stable

the bit is scraped and cut to break the rock.

4.Good Performance

the New Diamond bit has strong wear resistance, good diameter
protection and can make the cutting teeth be used efficiently.

5.The use of a wide range

the practice proves that the bit is suitable for carbonate rock,
limestone, chalk, clay rock, siltstone, sandstone and other soft
and hard (9 - grade drillability of rock, hard rock drilling),
compared with normal bit, especially drilling in 6-8 grade rock the
effect is particularly significant.

6. Item number includes:

COP32, IR3.5/COP34, DHD340/COP44, DHD350R/COP54,

DHD360/COP64, DHD380/COP84, DHD1120...
