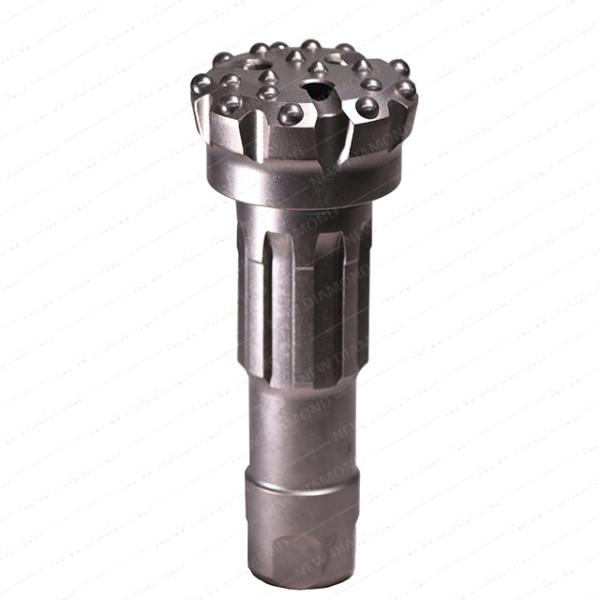

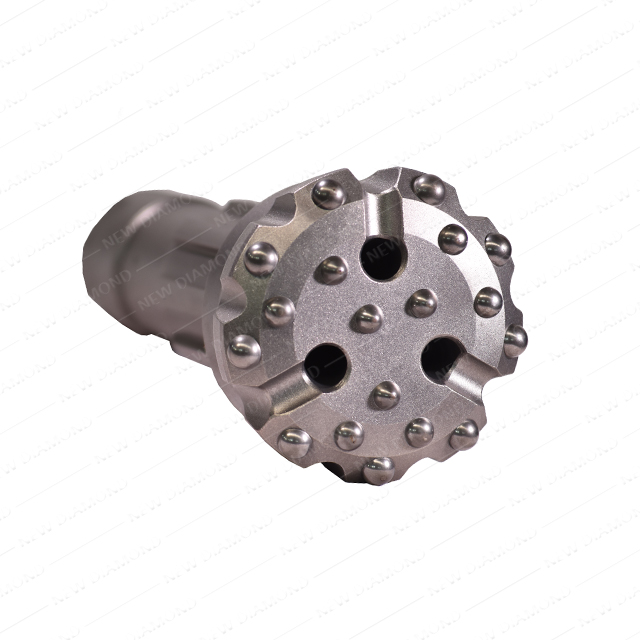

    6inch Dhd360 165mm DTH Hammer Bits With Concave Face

    Ask Lasest Price
    Brand Name : New Diamond
    Model Number : DHD360
    Certification : ISO9001:2008
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000pcs/month
    Delivery Time : 2-4weeks
    • Product Details
    • Company Profile

    6inch Dhd360 165mm DTH Hammer Bits With Concave Face

    Hard rock using 6 inch dth bit dhd360 165mm with concave face sphere button

    Specifications

    DHD seriesHead shape

    Diameter

    mm

    Number of ventsButton qty.pcs*dia.mmweight (KG)
    Button TypeGaugeFront
    DHD 360 dth hammer drill bitConcave Face1522Spherical8XØ184XØ16+4XØ15
    Flat Face1652Spherical8XØ188XØ1623
    Concave Face1712Spherical8XØ186XØ16+4XØ1524.4
    Concave Face1782Spherical8XØ186XØ16+5XØ1525.3
    Concave Face1902Spherical9XØ186XØ16+5XØ1526.5
    Concave Face2032Spherical10XØ188XØ16+6XØ1529.7
    WE can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.

    1.10 years manufacturing experience;
    2. Certificate: ISO9001:2008
    3. Material: Carbide


    Applications

    The New Diamond manufactured DHD 360 171mm 203mm is widely used in geological exploration, coal mine, water well drilling, borewell drilling, highway, railway, bridge, construction, mining, quarry, Civil engineering, ore mining,Dimension stone industry and so on.

    Feature Advantage

    1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
    2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
    3. Stable drilling speed: the bit is scraped and cut to break the rock.
    4. Good performance: strong wear resistance, good diameter protection which will make the cutting teeth more efficiently.

    5.Lower cost.


    The appearance of the picture is different from that of the actual product, and the actual product is the standard.


    6inch Dhd360 165mm DTH Hammer Bits With Concave Face


    About Us

    Hunan New Diamond Construction Machinery Co.,Ltd is a professional and modern high-tech enterprise which engaged in researching and manufacturing rock drill and pneumatic tools. The team has specialized in drilling and pneumatic tools manufacturing since 1998, and until 2020 the company has nearly 700 employees and covers 110000m2 area in total. It mainly designs and manufactures DTH hammers, various drilling bits, drill pipes and all kinds o f other drilling tools. The products are widely applied to earth-moving engineering, mining exploitation, oil drilling, water well drill,pile foundation engineering and etc.
