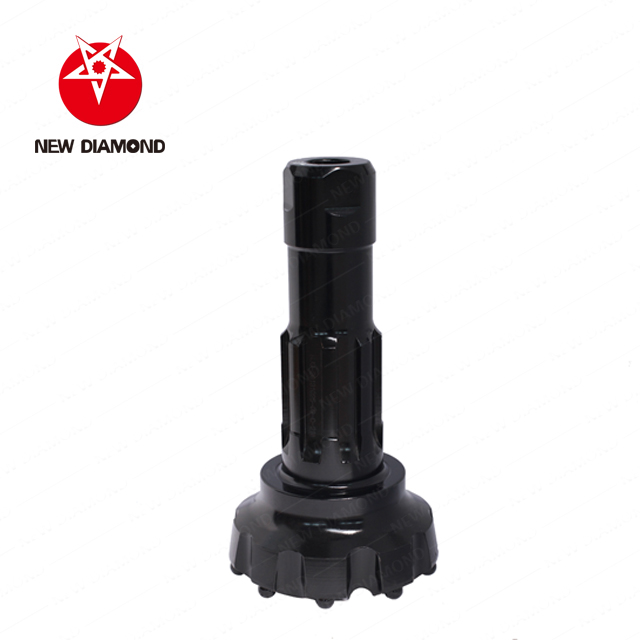

Drill Bit Speedbit Convex Dhd360 165mm Dhd380 Shank Bit
Hunan New Diamond offers top quality DTH hammers and bits which
have been tested in the hardest rock formation. Our bits use
quality hardened steel alloy for the bit body and premium quality
tungsten carbide buttons. With superb performance and long life
span. Our bits won high reputation among our customers.
Characteristics
- Advanced hammer designs with high power and air efficiency
increases productivity
- Tailored product offering covers all your applications and
conditions
- Easy service and maintenance designs reduces machine downtime
- Generic and proprietary shank options give you flexibility and
reliability
1. Button Shape: Spherical,Semi-ballistic,Ballistic.
2. Durable performance, wear resistant and withstanding large
impacting force.
3. Long life span.
5. Fast delivery time.
Specifications
| DHD series | Head shape | Diameter mm | Number of vents | Button qty.pcs*dia.mm | weight (KG) |
| Button Type | Gauge | Front |
| DHD 360 dth hammer drill bit | Concave Face | 152 | 2 | Spherical | 8XØ18 | 4XØ16+4XØ15 |
| Flat Face | 165 | 2 | Spherical | 8XØ18 | 8XØ16 | 23 |
| Concave Face | 171 | 2 | Spherical | 8XØ18 | 6XØ16+4XØ15 | 24.4 |
| Concave Face | 178 | 2 | Spherical | 8XØ18 | 6XØ16+5XØ15 | 25.3 |
| Concave Face | 190 | 2 | Spherical | 9XØ18 | 6XØ16+5XØ15 | 26.5 |
| Concave Face | 203 | 2 | Spherical | 10XØ18 | 8XØ16+6XØ15 | 29.7 |
| WE can design and manufacture according to customers requirement of
the bit diameter,the NO.of air holes,carbide buttons and the face
shape. |
1. Long life span: the wear-resist of tungsten carbides is 10-20 times
higher compared with other similar materials, which greatly extends
the life of the carbide bits;
2. High drilling efficiency: the high grade hardness of the
carbides can always stay sharp, which could increase the drilling
speeds too;
3. Stable drilling speed: the bit is scraped and cut to break the
rock.
4. Good performance: strong wear resistance, good diameter protection which will make
the cutting teeth more efficiently.
5.Lower cost.
Applications
The New Diamond manufactured DHD 360 165mm is widely used in
geological exploration, coal mine, water well drilling, borewell
drilling, highway, railway, bridge, construction, mining, quarry,
Civil engineering, ore mining,Dimension stone industry and so on.
