High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits

Hunan New Diamond Construction Machinery Co., Ltd.
Contact Now
    Buy cheap High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits from wholesalers

    Buy cheap High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits from wholesalers
    • Buy cheap High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits from wholesalers

    High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits

    Ask Lasest Price
    Brand Name : New Diamond
    Model Number : Mission50
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : According to order quantity
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

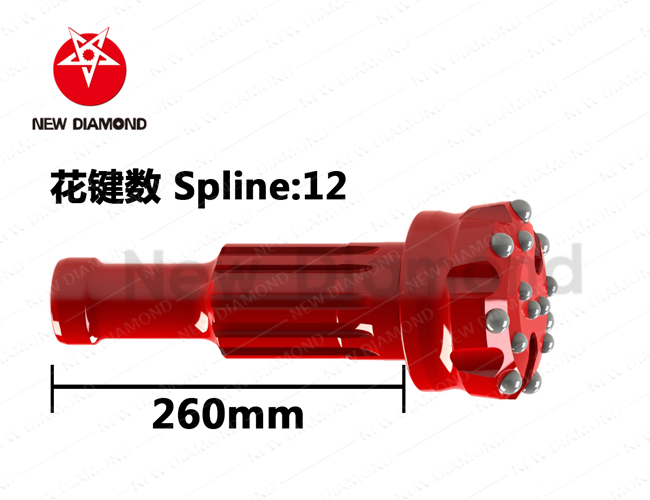

    High Efficiency DTH Button Bits For Mission50 , Tapered Button Bits

    Description


    It is made of high quality steel and hard alloy as raw material. After special heat treatment, the ball tooth bit can meet the requirement of hard rock digging, and it can minimize the loss in the process of energy transfer, and it is not easy to remove teeth and degenerate teeth, so that the impact energy can be concentrated on the rock, so as to achieve the purpose of high efficiency.



    Specifications


    MissionHead shape

    Diameter

    mm

    Number of ventsNO X button diamterweight (KG)
    ToothedGaugeFront
    Mission50Convex Face1402Round Button7XØ184XØ15+3XØ14
    Concave Face1522Round Button8XØ184XØ15+3XØ14
    We can design and manufacture according to customers requirement of the bit diameter,the NO.of air holes,carbide buttons and the face shape.
    Feature Advantage

    1. Long life span: the wear-resist of tungsten carbides is 10-20 times higher compared with other similar materials, which greatly extends the life of the carbide bits;
    2. High drilling efficiency: the high grade hardness of the carbides can always stay sharp, which could increase the drilling speeds too;
    3. New Diamond's bits are widely used in different rock formations like carbonate rock,limestone,chalk rock, clay rock,siltstone and sandstone;
    4. It can greatly reduce the drilling cost, because of its high drilling speed and life span, which reduces the times to changes bits in the drilling service.


    DTH Drill Bits:


    1, Direct sale
    2, reasonable price
    3. high efficiency
    Using:
    tungsten carbide button bit drilling series
    Suitable for cutting, drilling various hard Non-ferrous materials, such as marble, granite, glass, ceramic, hard concrete and brick.


    Applications


    It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.


    The appearance of the picture is different from that of the actual product, and the actual product is the standard.
