Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved

Hunan New Diamond Construction Machinery Co., Ltd.
Contact Now
    Buy cheap Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved from wholesalers

    Buy cheap Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved from wholesalers
    • Buy cheap Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved from wholesalers

    Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved

    Ask Lasest Price
    Brand Name : New Diamond
    Model Number : DTH Drill Rod
    Certification : ISO9001:2008
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : According to order quantity
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

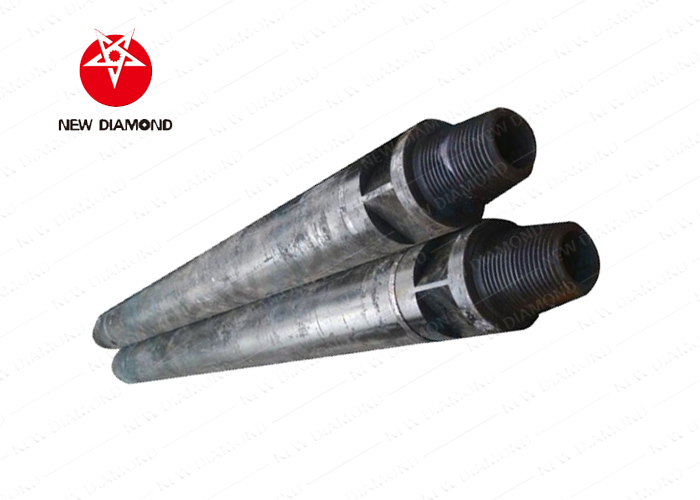

    Alloy Steel Rock Drill Rods / DTH Drill Tube For Well Drilling , ISO Approved

    DTH Spare Parts of Drill Tubes Forging Alloy Steel


    Description


    The best quality of raw materials and the most advanced processing technology, stable performance and long life. Easy to use, easy to install and disassemble, easy to repair and easy to repair.


    Applications


    Widely used in mines, quarries, earthworks and other engineering drilling blasting hole, guardrail hole, mountain reinforcement, anchorage and other engineering holes, geothermal exploration hole, Well bore and other fields.


    Specifications


    ACJDEAllowed Pull Down Unit.(KN·m)Approx Weight unit 3m long/kgs
    OD(mm)Tool jointsLength shoulder to flat

    Across Flat

    (mm)

    Width Spanner flat(mm)
    ThreadC1C2J1J2
    Ф76API2 3”/8REG25.438.116.090.56538.15.426.6
    Ф89API2 3”/8REG28.638.111.176.269.86.311.253.4
    Ф102API3 1”/2REG44.457.115.890.563.550.814.253.1
    Ф114API3 1”/2REG38.157.115.869.892.269.822.277.4
    Ф127API3 1”/2REG44.457.112.795.2120.650.847.0114.0
    Ф140API3 1”/2REG44.457.112.795.2120.650.847.0114.0
    Ф152API4 1”/2REG76.285.719.0120.6130.160.352.9127.0

    Feature Advantage


    1. price commitment: in order to ensure the high reliability of products, raw materials are selected by high quality brand products. Based on the same competitive conditions, without reducing the technical performance of products, we offer customers the best price at a sincere price.


    2. Quality commitment: product manufacturing and testing have quality records and inspection data; the performance of the product can withstand customer inspection.


    3. Customer service: in order to create new diamond brand, enhance the visibility of enterprises,establish corporate image, we serve customers with the principle of "preferential prices, good service, reliable product quality" principle.


    The appearance of the picture is different from that of the actual product, and the actual product is the standard.
