Description
1.according to China's mining conditions, to absorb the advanced
technology of domestic and foreign impactor and design and manufacture of the latest products.
2.reasonable selection of materials, advanced manufacturing
technology, quality assurance perfect.
3.has higher drilling speed.
4.can provide hardening treatment in order to prolong the service
life and reduce the cost of use.
5.single impact power is large, and the power consumption of broken
rock is low.
6.piston and bit weight to have the best momentum transfer.
7.the modern theory is adopted in the structural design, which
makes the stress wave duration longer, the stress amplitude is lower, and the piston life is long.
Applications
Widely used in mines, quarries, earthworks and other engineering
drilling blasting hole, guardrail hole,mountain reinforcement,
anchorage and other engineering holes, geothermal exploration hole,
Well bore and other fields.
Specifications
| NSD Series High Air Pressure DTH Hammers Without Foot Valve |
| Item Description | Weight(kg) |
| NSD4A | NSD5A | NSD6A | NSD8A | NSD10A | NSD12A |
| 1,Top Sub | 6.50 | 13.70 | 20.00 | 34.00 | 59.00 | 70.00 |
| 2,“O” Ring Of Top Sub | 0.10 | 0.015 | 0.015 | 0.015 | 0.03 | 0.04 |
| 3,Breakout Ring | | | | 0.30 | 0.50 | 0.80 |
| 4,Chenck Valve | 0.35 | 0.70 | 0.70 | 1.20 | 1.40 | 2.00 |
| 5,Spring | 0.05 | 0.10 | 0.10 | 0.10 | 0.30 | 0.10 |
| 6,Air Distributor | 1.50 | 2.00 | 3.50 | 6.00 | 10.50 | 16.00 |
| 7,Internal Cylinder | 2.10 | 2.80 | 4.20 | 6.50 | 12.50 | 25.00 |
| 8,Piston | 8.50 | 15.00 | 23.00 | 42.50 | 77.00 | 113.00 |
| 9,External Cylinder | 15.30 | 24.00 | 28.00 | 59.00 | 110.00 | 175.00 |
| 10,Guided Sleeve | 1.30 | 2.60 | 2.50 | 6.00 | 11.50 | 25.00 |
| 11,“O” Ring Of Stop Ring | 0.005 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| 12,Stop Ring | 0.20 | 0.50 | 0.50 | 1.20 | 1.50 | 4.50 |
| 13,Breakout Ring | | | | 0.30 | 0.50 | 0.08 |
| 14,Drive Chuck | 4.00 | 7.50 | 7.50 | 16.00 | 31.50 | 48.00 |
| 15,Drill Bit | 9.80 | 16.00 | 27.00 | 37.00 | 108.00 | 165.00 |
| NSD Series High Air Pressure DTH Hammers With Foot Valve |
| Item Description | Weight(kg) |
| NSD4 | NSD5 | NSD6 | NSD8 | NSD10 | NSD12 |
| 1,Top Sub | 6.50 | 15.00 | 20.00 | 41.00 | 59.00 | 70.00 |
| 2,“O” Ring Of Top Sub | 0.01 | 0.01 | 0.01 | 0.02 | 0.03 | 0.04 |
| 3,Breakout Ring | 0.01 | | | 0.20 | 0.30 | 0.80 |
| 4,Chenck Valve | 0.42 | 1.00 | 1.00 | 1.50 | 1.40 | 3.00 |
| 5,Spring | 0.04 | 0.10 | 0.05 | 0.10 | 0.30 | 0.10 |
| 6,Compression Buffer | 0.04 | 0.05 | 0.10 | 0.42 | 0.60 | 1.00 |
| 7,Air Distributor | 2.20 | 3.50 | 5.00 | 12.50 | 11.50 | 20.00 |
| 8,Internal Cylinder | 2.50 | | 5.00 | 8.60 | 11.00 | 23.00 |
| 9,Piston | 9.00 | 4.20 | 24.00 | 42.00 | 62.00 | 125.00 |
| 10,External Cylinder | 15.60 | 15.50 | 35.00 | 65.00 | 110.00 | 170.00 |
| 11,Guided Sleeve | 0.02 | 25.00 | 0.01 | 0.05 | 0.03 | 0.04 |
| 12,“O” Ring Of Stop Ring | 0.20 | 0.01 | 0.50 | 1.20 | 0.60 | 4.80 |
| 13,Stop Ring | | 0.50 | 1.50 | 3.40 | 4.50 | 18.00 |
| 14,Breakout Ring | 0.01 | | | | 0.30 | 0.80 |
| 15,Drive Chuck | 4.00 | 7.50 | 7.50 | 15.50 | 24.00 | 51.00 |
| 16,Drill Bit | 9.60 | 15.60 | 25.80 | 37.00 | 115.00 | 120.00 |
Feature Advantage
1.Price commitment: in order to ensure the high reliability of
products, raw material selection are using grapefruit brand products; under the same competitive conditions,
and not to reduce product technical performance on the basis of sincerity at a favorable price to
customers.
2.Quality commitment: product manufacturing and testing have
quality records and inspection data; the performance of the product can withstand customer inspection.
3.Customer service: in order to create new diamond brand, enhance
the visibility of enterprises,establish corporate image, we serve customers with the principle of
"preferential prices, good service, reliable product quality" principle.

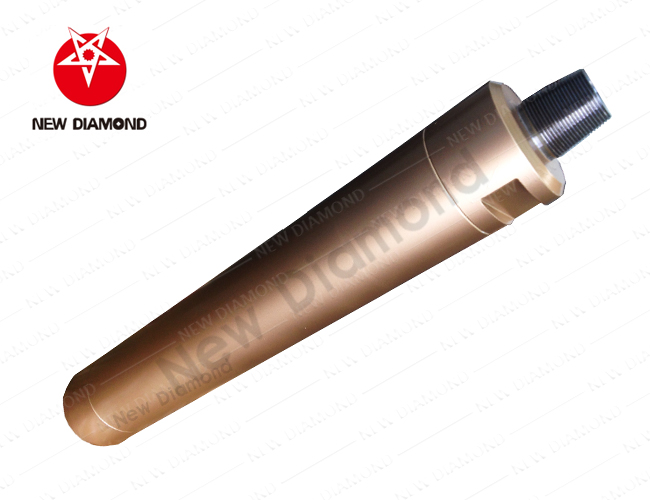

The appearance of the picture is different from that of the actual
product, and the actual product is the standard.
